All-in-One Industrial PC iPC G Series

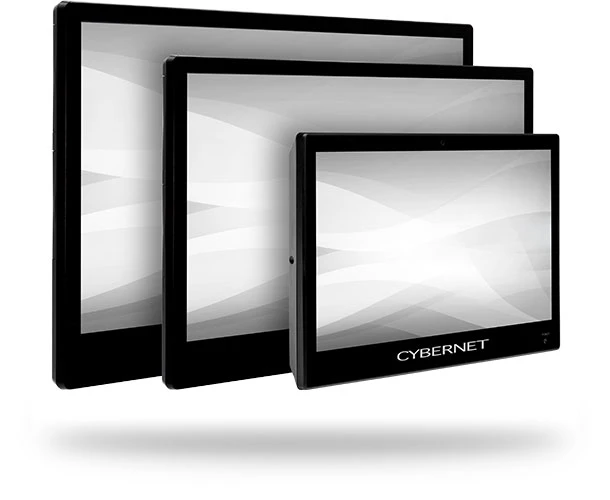

Industrial All-in-One PC Stacked Angle
  • Industrial All-in-One PC Stacked Angle Thumbnail
  • Industrial All-in-One PCs Front & Back Thumbnail
  • Industrial All-in-One PC Back Thumbnail
  • Industrial All-in-One PC with Base Stand Back Angle Thumbnail
  • Industrial All-in-One PC with Base Stand Thumbnail
  • Industrial All-in-One PC with Base Stand Front Angle Thumbnail
24"
22"
15"

Power your facility with the most advanced, durable all-in-one industrial PC on the market: The iPC G Series. Combining Cybernet's proven engineering prowess with the latest computer components, the iPC G Series delivers the best performance and reliability.

Key Features:
  • Industrial-Grade: Built to withstand harsh temperatures, humidity and mechanical impact.
  • Powerful Processing: Latest-generation Intel CPUs for seamless performance.
  • IP65 Rated: Sealed to defend against dust and liquid damage.
Industrial All in One PCs Rated for Extreme Conditions

Rated for Extreme Conditions

Tired of spending money on expensive repairs and part replacements? Built for maximum endurance, our iPC G Series is tested and certified for the harsh conditions of industrial facilities.

  • Dust & Water Resistance: The IP65-rated sealed front bezel protects the computer from errant dust, metal flakes, and water jets.

  • Extreme Temperatures: Whether hot or cold, the iPC S Series can operate in temperatures ranging from 0°C (32°F) to 40°C (110°F).

  • High Humidity: Too humid in your facility? Our computers have been tested and certified up to 90% humidity.

Industrial All in One PCs with Superior Touchscreen

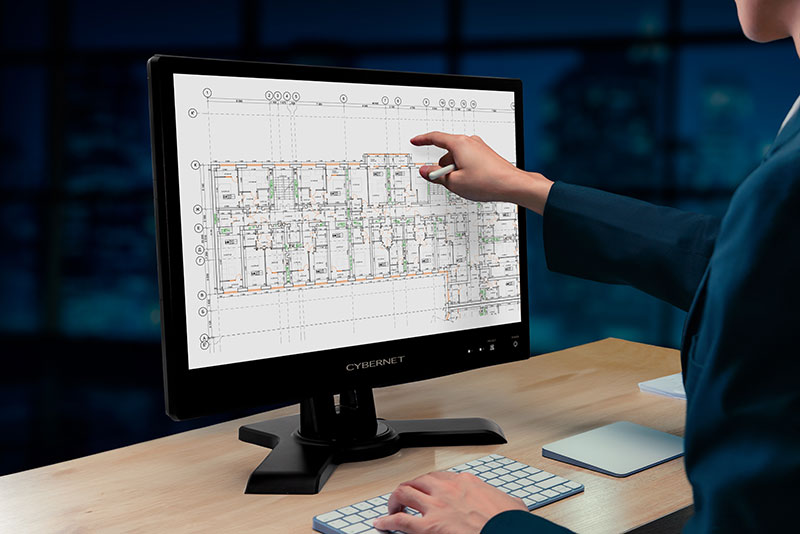

Superior Touchscreen

The iPC G Series comes with chemically hardened, tempered touch glass, engineered for durability and responsiveness. Ideal for warehouses or manufacturing lines, this toughened glass ensures longevity and reduces maintenance costs.

  • Durability: The chemically tempered glass screen can endure impacts that would ruin another untreated display.

  • Accuracy: The PCAP touch screen can be calibrated for different factors, such as condensation on the screen or workers wearing gloves.

  • High Visibility: In areas of harsh light, the anti-glare filter preserves visibility with zero impact on functionality.

Brilliant Display

Our iPC G Series has several display options to meet your specific needs. The 22" model provides excellent image quality and color accuracy, while the 24" option features the market's brightest and most robust standard industrial computer display. All models use industrial-grade panels to provide the most robust reliability in the harshest environment.

  iPC G15 iPC G22 iPC G24
Screen Type IPS AHVA/IPS IPS
Resolution Full HD Full HD Full HD
Brightness 350 Nits 250 Nits 400 Nits
Wide-Angle Display Yes Yes Yes
Available Enhancements Permanent anti-glare and embedded privacy filters

Customize Your All-In-One Industrial PC

Your computer should adapt to your needs, rather than the other way around. Offering different features you can choose from, the iPC G Series can be customized to meet the exact requirements of your facility.

Industrial All in One PC with Processing Power & Memory

Processor & Memory

Choose from multiple processor and memory options for smooth operations without slowdowns or interruptions.

VESA Mountable Industrial All in One PC

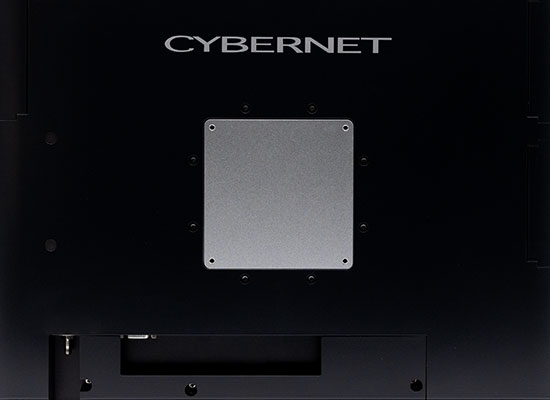

VESA Mount

The universal VESA mount lets you attach your industrial all-in-one PC anywhere with matching brackets.

Industrial All in One PC with 2D Barcode Scanner

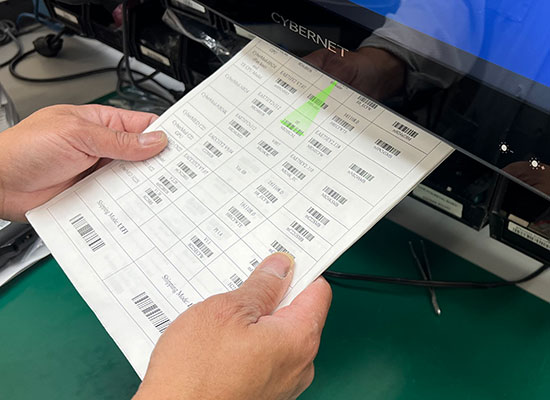

Optional Peripherals

Need more security and functionality? Opt for RFID readers, 2D barcode scanners, web cameras, and more.

Specifications

Display

1920x1080 | 16:9 | 178°/178° Viewing Angle

CPU Support

11th Generation Intel Core i3/i5/i7 Processors

Memory

2x DDR4 SO-DIMM Sockets, Populated up to 64GB

Operating System

Windows 11, Windows 10, Windows IoT, Linux

Video & Graphics

Intel Iris Xe Graphics

Touch Screen

PCAP Multi-Touch with Optional Antiglare Technology

Networking

2x 2.5 Gigabit (Gbe) LAN

DC Power Out

Optional: Power Module with 26 Watts of Power Available for External Devices

Wireless

Intel Tri-Band WiFi 6E 802.11ax, 802.11 a/b/g/n/ac, + Bluetooth 5.2

Expansion Slots

1x mPCIe Full-size slot
1x M.2 E Key Short Slot for PCIe or USB Interface

HDD Support

1x 6Gbps Serial ATA III Port
1x M.2 M Key for NVMe SSD

TPM

Version 2.0 Standard. Optional: Version 1.2

Power Supply

Power Supply with Universal input: 100~240V AC, 50-60Hz
Output: 19V
12V/24V Support with Optional DC Converter

IP Rating

IP65 Sealed Front Bezel and IPX1 Back Cover

Pressure

700 to 1060hPa (0~3000 meters)

Dimensions

iPC G24: 22.32" x 14.23" x 2.02" (L,W,D)
iPC G22: 20.15" x 13.15" x 2.02" (L,W,D)
iPC G15: 14.85" x 09.85" x 1.75" (L,W,D)

Weight

iPC G24: 14.8 lbs
iPC G22: 13.3 lbs
iPC G15: 6.6 lbs

Wall Mount

Supports 100mm VESA mounting holes

Environment

Operating Temperature: 0°C~35°C

Relative Humidity

10%~90% (non-condensing)

Certifications

IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH

I/O Ports

4x USB 3.2 Gen1
2x USB2.0 (Side) [Exlcudes 15"]
1x USB-C (10Gbps) [Exlcudes 15"] | Supports 15W Power Delivery, 5V/3A
1x RS232/422/485
1x Display Port
1x 4Pin DIN power Jack

Audio

Realtek High Definition Audio. Two built-in 3.0 watt speakers.
One combination jack for Audio Line Out and Microphone.

Warranty

4 Years* Standard with Optional Plans up to 5 Years



Notes:
*Only for US-based customers.

Looking to download this information?

iPC G Series Download PDF Version
iPC G15 Download PDF Version
Internal UPS Download PDF Version

How Cybernet Makes the Difference

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Warranty

Our devices include a 4-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty.

Customization

The iPC G Series comes with a range of processors, operating systems, and features to choose from, saving your business from expensive replacements.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing ensures that our devices have a failure rate below 0.5%.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.
- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

What cleaners or disinfectants are compatible with your units?

We test our computers with a wide range of disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.

Can I use leather or rubber gloves with your touchscreens?

The standard touchscreen on our industrial units are PCAP-type similar to the common smartphone touchscreen. As such, they will not work with leather or rubber gloves. We do offer a secondary touchscreen option for special projects that are resistive type and can support both leather and rubber gloves. Please reach out to our sales team for additional information.

Do you offer an anti-glare display?

Yes. We offer an anti-glare option on all of our industrial units to overcome bright areas.

Why should I buy an industrial computer versus a Dell or HP computer?

Opting for an industrial-grade computer ensures enhanced reliability and profit-loss from downtown. Whether it's due to heavy vibrations, constant exposure to dust and water, or a high chance of damage, these environments demand a different kind of computer that is designed to operate in these conditions such as our IPC units. Additionally, the typical Dell or HP computer only offers the latest and greatest ports and options, following the consumer PC market. However often times industrial applications require more legacy ports such as serial/parallel ports or GPIO/DIO.

Does the computer support Windows 11?

Yes. The processor and related components are ready for Windows 11 and fully supported.

Do you provide drivers compatible with Microsoft Configuration Manager?

Yes. Cybernet publishes Microsoft Configuration Manager drivers on our support page. Should you have any questions, simply reach out to our support team for prompt support.
