CPU Support
|
6th Generation Intel Core i3, i5 & i7 Processors
|
Chipset
|
Intel C236
|
Memory
|
2x DDR4 2133MHz SO-DIMM sockets, populated up to 64GB (32GB x 2)
|
Operating System
|
Windows 10, Windows IoT, Windows 8.1, Windows 7, Linux
|
Video & Graphics
|
Intel HD 630/530 Graphics
|
Networking
|
1x Gigabit (Gbe) Intel i219LM
1x Gigabit (Gbe) Intel I210
4x Gigabit (Gbe) Intel I210 w/IEEE 802.3at (25.5W) Power output per port
|
Wireless
|
802.11 a/b/g/n/ac + Bluetooth 4.0
Integrated 3G/4G LTE Mobile Broadband (Optional)
|
Expansion Slots
|
2x miniPCIe (Full-Size)
1x miniPCIe (Half-Size)
1x CFast Slot
|

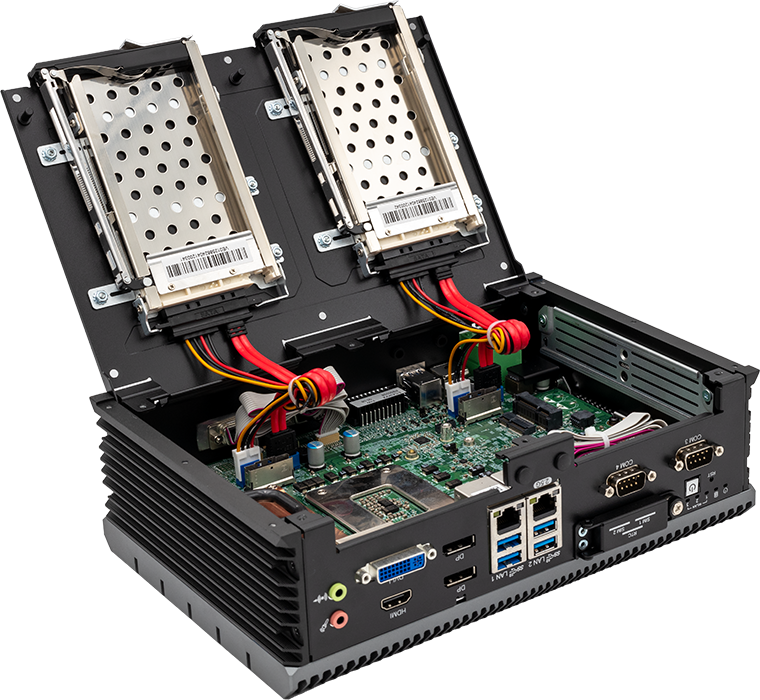

HDD Support
|
2x 2.5" Solid State Drives up to 2TB
|
Display Outputs
|
DVI-D / 1920 x 1200 @ 60Hz
DVI-I / 1920 x 1200 @ 60Hz
Display Port / 4096 x 2304 @ 60Hz
|
Power Supply
|
180W External Supply with High Voltage Surge Protection. DC-IN: 6V~36V
|
Shock & Vibration
|
IEC60068-2-27 & IEC60068-2-64
|
Dimensions
|
10.2" x 6.9" x 3.1" (L,W,D)
|
Weight
|
8.5 lbs
|

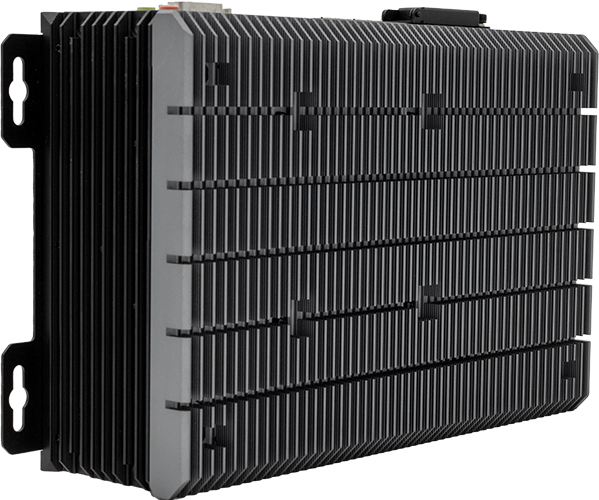

Wall Mount
|
Custom Mounting Bracket for Wall, VESA, Din Rail or Rack Mount Solutions
|
Environment
|
Operating Temperature: -25°C~70°C
|
Relative Humidity
|
10%~95% (non-condensing)
|
Certifications
|
FCC, CE, RoHS, EN50155, EN50121-3-2, Energy Star, IEC60068-2-64 , IEC60068- 2-27
|

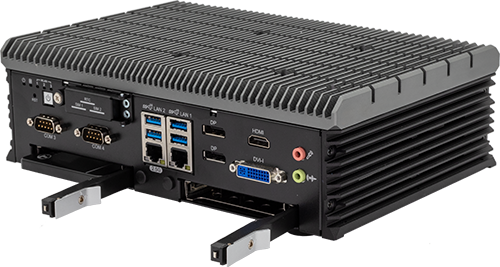

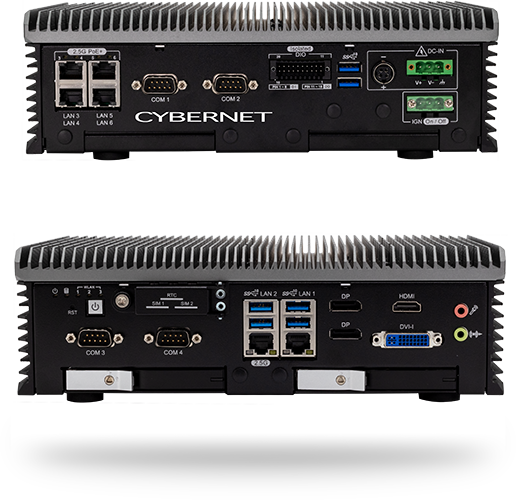

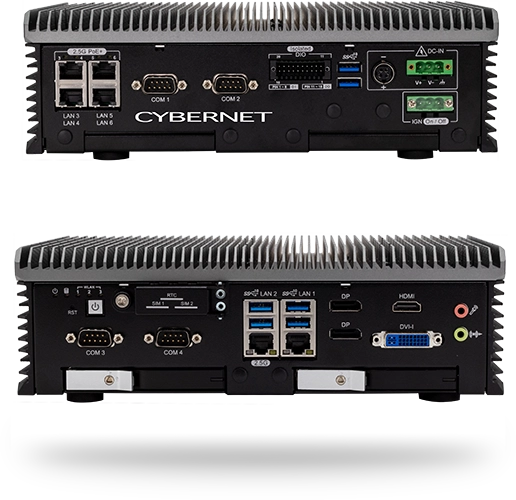

I/O Ports
|
6x USB 3.0 Ports
16x Isolated DIO (8 DI, 8 DO)
4x Serial Ports (RS-232/422/485)
SIM Card Socket
6x Gigabit (Gbe) Ports (LAN3/4/5/6 PSE)
1 x DP Out
1x Terminal block for Power on/off switch
1x Terminal DC-in (9~36V input)
1x DC-In (9~36V input)
|
Audio
|
Realtek ALC892 High Definition Audio, Dolby Digital 5.1 surround sound, 10 channels of enhanced sound quality, multiple audio streams and jack re-tasking
|
Warranty
|
1 Year Standard with Optional Plans up to 5 Years
|
