Rugged Rack Mount PC for Industrial Use iPC R10

Rack Mount PC
  • Rack Mount PC Thumbnail

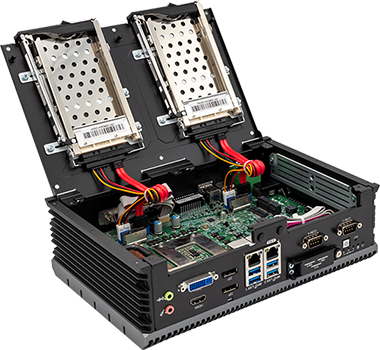

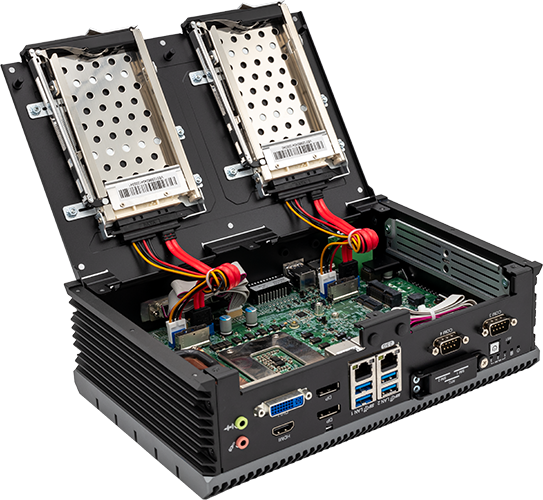

  • Inside of Rack Mount PC Thumbnail

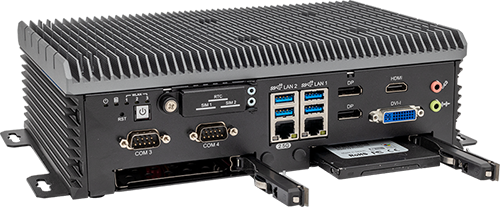

  • Rack Mount PC with Dual Removable Drive Bays Thumbnail
  • Rack Mount PC Front Angle Thumbnail

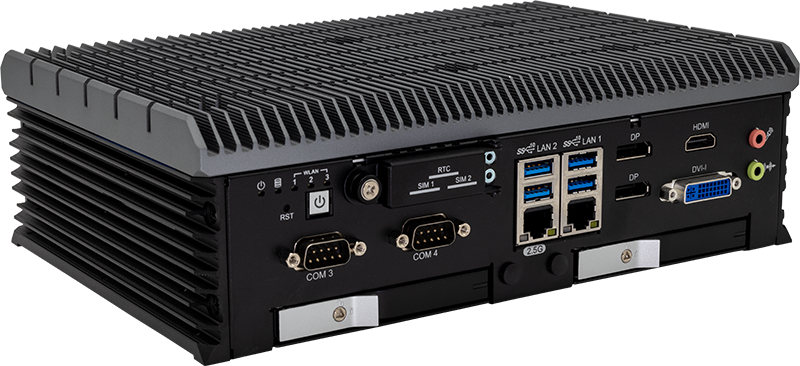

  • Rack Mount PC Back Angle Thumbnail

Compact, Powerful, and Built for Extreme Conditions

The iPC R10 Rack Mount PC is a high-performance, industrial-grade computer designed for automation, robotics, manufacturing, and mission-critical applications. Featuring a rugged fanless design, shock-proof construction, and wide voltage input support, it delivers uncompromising reliability in demanding environments.

Key Features:
  • Fanless Cooling: No moving parts for enhanced durability, silent operation, and lower maintenance.
  • Industrial-Grade Build: Tested to IEC standards to withstand shock, vibration, and extreme temperatures.
  • Universal Mounting: Compatible with VESA, DIN rails, and rack mounts for flexible deployment.
  • Flexible Power Input: Supports 9-50V DC input, making it ideal for unstable power environments.
Designed for Harsh Environments

Designed for Harsh Environments

Built with industrial-grade components, the iPC R10 thrives in harsh conditions, delivering long-term reliability and performance.

  • Shock & Vibration-Resistant: Rigorously tested to IEC standards for stability under high-impact conditions.

  • Extreme Temperature & Humidity Endurance: Operates from -13°F (-25°C) to 158°F (70°C) and up to 95% humidity.

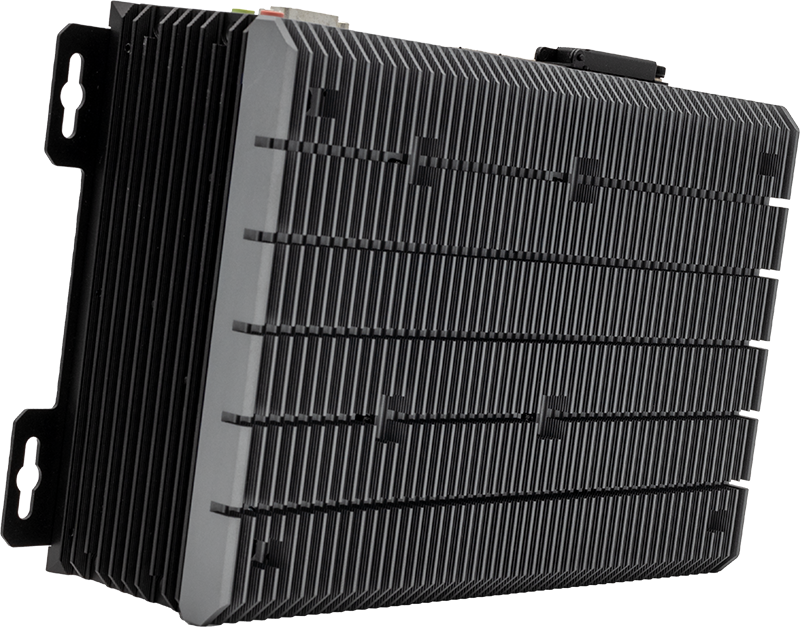

  • Fanless Cooling System: Eliminates moving parts, reducing failure rates and improving overall longevity.

Seamless Integration with Industrial Systems

Seamless Integration with Industrial Systems

The iPC R10 Rack Mount PC is engineered to integrate effortlessly with automation equipment, robotics, and manufacturing systems, reducing downtime and improving efficiency.

  • Multi-Display Support: Features two 8K DisplayPorts, HDMI, and FHD DVI-I for high-resolution multi-screen setups.

  • GPIO Ports for Industrial Control: 16-bit GPIO ports for interfacing with PLC devices, sensors, and machinery.

  • Mini PCIe Expansion Slots: Two full-size & one half-size mini PCIe slots for enhanced functionality.

Compact Yet Powerful - Built for Maximum Flexibility

Compact Yet Powerful - Built for Maximum Flexibility

Ideal for tight spaces and unstable power environments, the iPC R10 is designed for high-performance computing in compact form.

  • Compact & Lightweight: Easily fits into space-constrained industrial setups.

  • Versatile Mounting Options: Compatible with rack mounts, VESA, and DIN rails for easy installation.

  • Reliable Power Management: 9-50V DC input range ensures stable operation in fluctuating power conditions.

Built to Adapt - Customize Your Rack Mount PC

Removable Drive Bay

Removable Drive Bay

Lockable and easily swappable drives for quick data transfer and enhanced security.

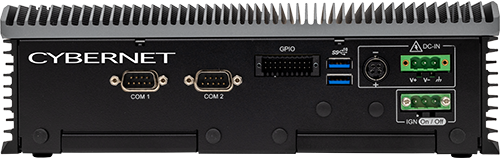

Custom I/O Plates Available

Configurable Expansion

Customize with various CPUs, memory, and storage options to meet your exact needs.

Configurable Expansion

Custom I/O Plates Available

Need a custom expansion slot configuration? We offer custom I/O plate designs for a minimal fee.

Specifications

CPU Support

13th Generation Intel Core i3, i5, i7, & i9 Processors

Chipset

Intel R680E

Memory

2x DDR4 3200MHz SO-DIMM sockets, populated up to 64GB (32GB x 2)

Operating System

Windows 11, Windows 10, Windows IoT, Linux

Video & Graphics

Intel HD 770/730 Graphics

Networking

1x Gigabit (Gbe) Intel i219LM | 1x 2.5 Gigabit (2.5Gbe) Intel i226

Wireless

Intel Tri-Band WiFi 6E 802.11ax, 802.11 a/b/g/n/ac, + Bluetooth 5.2
Integrated 3G/4G LTE Mobile Broadband (Optional)

Expansion Slots

1x miniPCIe (Full-Size)
1x M.2 E Key Short Slot (2230) for WiFi/Bluetooth module
1x M.2 M Key Slot (2280) for NVMe SSD
1x M.2 B Key Slot (3042/3052) for optional LTE module

HDD Support

2x 2.5" Solid State Drives, supports SW RAID 0 & 1

Display Outputs

2x Display Port / 7680 x 4320 @ 60Hz / 5120 x 2880 @ 60Hz
1x DVI-I / 1920 x 1200 @ 60Hz
1x HDMI / 1920 x 1080 @ 60Hz

Power Supply

160W External Supply with High Voltage Surge Protection. DC-IN: 9V~50V

Shock & Vibration

IEC60068-2-27 & IEC60068-2-64

Dimensions

10.24" x 6.89" x 3.11" (L,W,D)

Weight

8.4 lbs

Wall Mount

Custom Mounting Bracket for Wall, VESA, Din Rail or Rack Mount Solutions

Environment

Operating Temperature, 35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature, 65W TDP CPU : -40°C to 55°C (-40°F to 131°F)

Relative Humidity

5%~95% (non-condensing)

Certifications

FCC, CE, EN50155, EN50121-3-2, IEC60068-2-64 , IEC60068- 2-27

I/O Ports

6x USB 3.0 Ports
16x GPIO
4x Serial Ports (RS-232/422/485)
2x SIM Card Sockets
1x Terminal block for Power on/off switch and Ignition switch
1x Terminal DC-in (9~50V input)
1x Microphone
1x Line Out
1x DC-In (9~50V input)

Audio

Realtek ALC888-VD High Definition Audio, Dolby Digital 7.1 surround sound, 10 channels of enhanced sound quality, multiple audio streams and jack re-tasking

Warranty

1 Year Standard with Optional Plans up to 5 Years

Looking to download this information? Download PDF Version

How Cybernet Makes the Difference

Lifetime Technical Support

Free, U.S.-based tech support for the lifetime of your product.

Warranty Protection

Includes a 1-year warranty, with extended options available.

Customization Available

Choose the right processor, storage, and features tailored to your industrial needs.

Less Than 0.5% Failure Rate

Our rigorous testing & quality control ensure industry-leading reliability.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.
- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

How does the iPC R10 handle power fluctuations?

The system supports smart ignition control with a programmable delay (default 30 seconds) to ensure stable power before booting.

What video cards are compatible with this unit?

As a fanless system, it supports low-power GPUs like the NVIDIA GT1030. Adding a GPU may limit the temperature range to 0°C-35°C.

Can I use my own expansion mPCIe card?

Yes! We can customize I/O plates to fit your expansion needs. Contact us for a custom design at a minimal fee.

Does the iPC R10 support Windows 11?

Yes, it fully supports the latest Windows 11 Pro with no installation issues.

Does the unit support RAID?

Yes, it comes with built-in support for RAID 0 and RAID 1.
