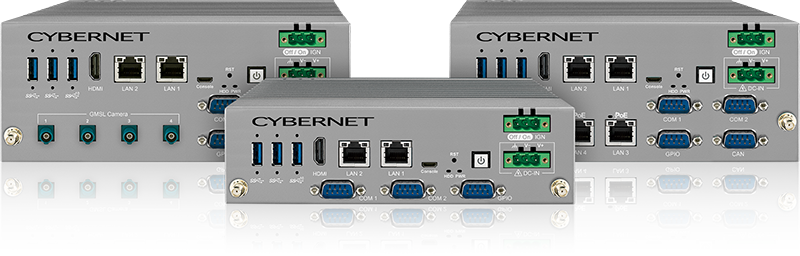

Industrial AI Box PC CyberEdge AI Series

Available Models:

Standard Ports

4x GSML Ports

4x PoE Ports

Achieve more with less: Maximize productivity and cut costs in your operations with our industrial AI box PCs, designed for those who demand efficiency and resilience. The CyberEdge AI computers have the strength and smarts to tackle your toughest challenges.

Key Features:

AI-Enabled: Bleeding-edge hardware that supports AI programs
NVIDIA® Inside: NVIDIA® Jetson Orin™ NX architecture with integrated deep learning accelerators
Rugged Design: Industrial-grade components that withstand harsh environments
Efficient Cooling: Thoughtful ventilation and fine-tuned smart fans optimize fan noise

AI-Ready

With the latest in computer hardware from NVIDIA® and Intel®, the CyberEdge AI series is ready to integrate AI into your day-to-day operations and expand your capabilities.

Real-Time Data Analysis Process and interpret data as it is generated, improving decision-making and operational efficiency with up-to-the-second insights.
Machine Vision Monitor objects for automated quality control, increasing accuracy while reducing manual effort and error rates.
Automation Streamline repetitive and manual tasks to boost efficiency and cost savings by reducing human intervention.

Industrial-Grade Design

Our industrial AI box PC doesn't sacrifice durability for performance. We exhaustively test and certify every model to ensure it can withstand the worst you can throw at it.

Shock and Vibration-Resistant Tested and certified for IEC 60068-2-27 to endure harsh vibrations and sudden impacts without losing functionality.
Extreme Temperatures The CyberEdge AI series can operate in temperatures ranging from -13°F to 158°F (-25°C to 70°C).
Power Surge Protection Automatic voltage detection protects the PC from sudden power surges, preventing damage and expensive replacements.

Versatile Design

Built tough to think smart. From automating production lines to operating vehicles, our CyberEdge industrial edge AI box PC adapts to your needs regardless of how complex they are.

Power Flexibility Wide range 9V to 50V power input ensures compatibility with nearly any DC power source.
Device Compatibility With numerous ports, you can easily connect the computer to a wide range of machines and devices.
Mounting Options Thanks to the included wall mount and optional DIN rail mount, you can install it wherever needed.

The CyberEdge AI Series Models Compared

Each variant of our industrial AI box PC lineup boasts identical computing power and sturdy design. The sole distinction is in their specialized I/O port configurations to fit diverse needs.

CyberEdge Ai1 CyberEdge Ai2 CyberEdge Ai3

Unique Features Wireless connectivity and ignition control Multiple GSML camera inputs Power-over-Ethernet capability

Best Used For Vehicle-mounted computer Machine vision, vehicle computing, and video monitoring Manufacturing and machinery control

A New Industrial Revolution

Factory Automation

Manage multiple machines with a single computer while also enabling predictive analytics and detecting equipment failure early.

Digital Logistics

Utilizing AI-powered machine vision makes it easier than ever to track objects, giving you better control over both.

Vehicle Operation

Intelligent ignition control, wireless connectivity, and vehicle camera compatibility make the CyberEdge AI series perfect for bus, truck, or heavy equipment operations.

Specifications

CPU Support	NVIDIA® Jetson Orin™ NX, 8-core Arm Cortex-A78AE v8.2 64-bit CPU
GPU Support	NVIDIA® Ampere™ GPU with 32 Tensor cores
Memory	16GB LPDDR5 Memory
Operating System	Linux with Comprehensive NVIDIA® JetPack SDK for AI applications
Networking	2x 10/100/1000 Mbps GigE Ethernet LAN
Wireless	Optional Intel® AX210 WiFi6E Support Optional 5G/4G LTE/GPS Support
Storage	256GB NVMe Standard, Up to 1TB NVMe
Power Input	DC 9V to 50V
Power Supply	120W 24V@5A DC Power Supply
Dimensions	7.60" x 5.20" x 2.17" (L,W,D) [CyberEdge Ai1] 7.60" x 5.20" x 3.15" (L,W,D) [CyberEdge Ai2/Ai3]
Environment	Operating Temperature: -25°C~70°C
Relative Humidity	5%~95% (non-condensing)
Certifications	FCC, CE, EN50155, EN50121-3-2, RoHS
Ignition Control	16-Modes Control, 3 Pin Remote Power Switch
I/O Ports	1x HDMI up to 3840 x 2160 @60Hz 2x 1GB LAN Ports 2x USB 3.1 Gen2 1x USB 3.1 Gen1 1x GPIO (7-bit) 1x MicroUSB Console and Recovery Port 2x COM (RS-232/422/485) 1x CAN FD Bus (CyberEdge Ai2/Ai3) 4x GSML Camera Input Ports (CyberEdge Ai2) 4x PoE Power Sourcing Ports (CyberEdge Ai3)
Mounting	Comes with Wall Mount, optional DIN Rail Mount
Warranty	1 Year Standard with Optional Plans up to 5 Years

What Makes Cybernet Different

Warranty

Our devices include a 3-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty and accidental damage protection for extra coverage.

Deployment & Imaging

We can deploy the final drive image for all your purchased units, saving you installation and setup time. Your computers will arrive pre-configured and ready for use.

Technical Support

Our U.S.-based tech support team is here to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Legacy Compatibility

Our computers have ports and features that connect with older medical devices and equipment, saving your hospital from expensive replacements.

Customization

Besides different screen sizes, our computers offer various processors and features, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our commitment to quality and support means our devices have a failure rate below 0.5%. We rigorously stress-test each unit before shipping, guaranteeing reliable performance.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.

- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

What is the AI Performance of the CyberEdge AI Series?

The NVIDIA® Jetson Orin™ NX is capable of 100 TOPS maximum AI performance with 1024 CUDA cores and 32 Tensor cores. The unit also features 2x NVIDIA® Deep Learning Accelerator Engines. This is 3X the performance of NVIDIA® Jetson AGX Xavier.

Can you offer the same box in 8GB of memory instead? What about more or less storage space?

Certainly, please inquire with our sales as the standard configuration is 16GB of memory and 256GB of NVMe storage. Due to some limitations on the NVIDIA® platform, they require customizations.

What is the CAN FD bus used for?

The CAN FD bus is used for communicating with the onboard vehicle computer(s) and sensors. Developed by Bosch in the early 2010s, it is the successor to the original CAN bus interface to allow high performance communication for more modern vehicle systems. Through the CAN FD interface, the CyberEdge units can collect and monitor data, and also control different aspects of the vehicle's computer(s).

What is Ignition Control?

In most vehicle power systems, the initial ignition will put heavy stress on the system and the available power voltage will fluctuate because all the electronic and mechanical components in the vehicle are all powering on at the same time. Due to this, the DC power will fluctuate as low as 4V from the nominal 12V and will cause electronic components to potentially lock up or become unstable and not power up properly. The Ignition Control will resolve this issue by detecting the ignition, and through software initiate a timer that waits for the vehicle power to become stable before attempting to power on the computer ensuring a successful power up.
