All-in-One Touchscreen PC iOne S Series

All-in-One Touchscreen PCs Stacked
  • All-in-One Touchscreen PCs Stacked Thumbnail
  • All-in-One Touchscreen PC Front Thumbnail
  • All-in-One Touchscreen PCs Front Stacked Thumbnail
  • VESA Mountable All-in-One Touchscreen PCs Thumbnail
  • All-in-One Touchscreen PC in Warehouse Thumbnail
24"
20"

Unlike off-the-shelf computers, the iOne S series of all-in-one touchscreen PCs provide superior performance you can depend on for years to come. Built to adapt to your business needs, they also offer enhanced security and deployment features. Contact us for a quote or to discuss a custom solution.

Need 22" or 15" screen size? Check out our iPC G Series.

Key Features:
  • PCAP Touchscreen: Accurate and responsive multi-touch for ease of use.
  • Intel HD Graphics: Support demanding ERP software and other business-oriented applications.
  • Powerful Processing: Intel i5 and i7 CPUs deliver processing power at the right price.
Top Performance

Top Performance

Our all-in-one PC with touchscreen uses proven and powerful components packed into a compact and quiet unit. The iOne S Series can support whatever software or applications your business uses.

  • Operating Systems: Support Windows 7, 8.1, 10, IoT, and 11, along with Linux for greater flexibility.

  • Processors: Choose from Intel i5 and i7 CPUs for dependable performance.

  • RAM: With up to 32GB of DDR4 RAM, the iOne S Series has power to spare.

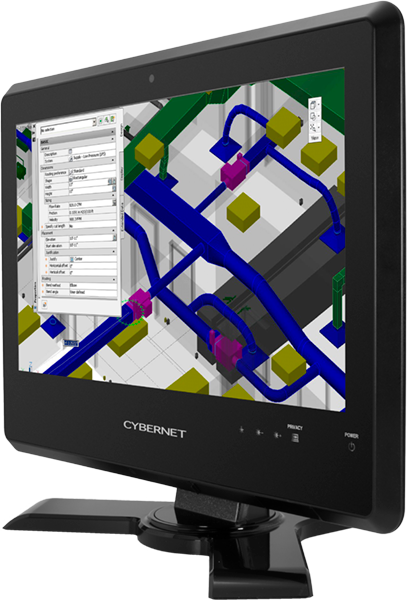

Flexible Design

Flexible Design

With a sleek look that hides a powerhouse underneath, the iOne S Series can take on any role - hard or easy. Streamline tasks effortlessly and create a modern, professional ambiance in any workspace.

  • Universal VESA Mount: Put it wherever you need it, whether on a desk or a wall.

  • IP65 Rating: A dust and water-proof front bezel protects the internal components and makes cleaning a breeze.

  • Fanless Cooling: Enjoy quiet operations and superior durability thanks to fewer moving parts.

Tempered Touchscreen

Tempered Touchscreen

For our all-in-one touchscreen PCs we use chemically hardened glass that offers greater durability without sacrificing responsiveness. Enjoy better user experience and savings on repair costs.

  • Responsiveness: Accurate multi-touch functionality and input registration even when wearing nitrile gloves.

  • Durability: Resistance to scratches, drops, and impacts, providing long-lasting protection.

  • Savings: Spare your budget by not having to buy expensive replacements or repairs.

Customize Your All-In-One Touchscreen PC

We believe that your computer should adapt to your needs, rather than the other way around. The iOne S all-in-one touchscreen PCs can be customized to meet your exact needs.

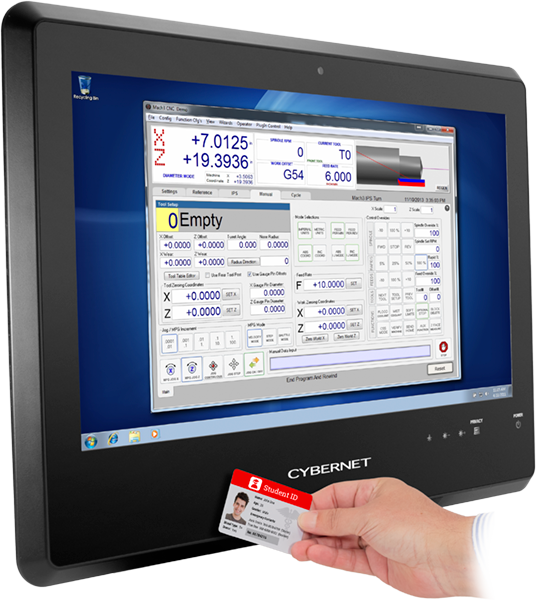

Security Features

Security Features

Add RFID scanners, smartcard readers, or fingerprint readers for access control and greater security for your business.

I/O Ports

I/O Ports

Modern and legacy I/O ports let you use both new and old equipment without purchasing expensive replacements.

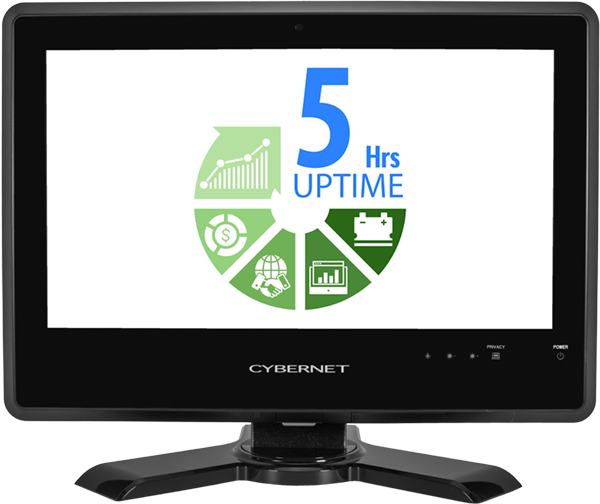

Uninterruptible Power Supply

Uninterruptible Power Supply

The internal UPS battery can supply up to 5 hours of power, protecting your data from loss if a power outage occurs.

Specifications

Display

24": 1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio
20": 1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio
CPU Support

6th/7th Generation Intel Core 3955U/i3/i5/i7 Skylake Processors with vPro Technology*

Memory

2x DDR4 2133/2400MHz 204-pin SO-DIMM sockets, populated up to 32GB

Operating System

Windows 11 (11th Gen Only), Windows 10, Windows IoT, Windows 8.1 (6th Gen only), Windows 7 (6th Gen only), Linux

Video & Graphics

Intel HD Graphics 520

Touch Screen

PCAP Multi-Touch with Optional Antiglare Technology

Networking

1x Gigabit (Gbe) LAN Intel i219LM | 1x Gigabit (Gbe) LAN Realtek RTL8111G

DC Power Out

Optional: Power Module with 26 Watts of Power Available for External Devices

Wireless

Intel Dual Band Wireless-AC 802.11 AC + Bluetooth 4.2

Expansion Slots

1x mPCIe Half-size slot
1x M.2 E key short slot for PCIe or USB interface
1x PCIe x8 slot (19" & 20" Only)

HDD Support

2x 6Gbps Serial ATA III ports

TPM

Version 2.0 Standard. Optional: Version 1.2

Power Supply

120W Power Supply, Input: universal 100~240V AC, 50-60Hz.
12V/24V Support with Optional DC Converter

Waterproof

IP65 Sealed Front Bezel and IP54 Back Cover

Dimensions

iPC S24: 23.50" x 14.80" x 2.10" (L,W,D)
iPC S20: 20.35" x 14.37" x 1.95" (L,W,D)

Weight

iPC S24: 17.75 lbs
iPC S20: 13.25 lbs

Wall Mount

Supports 75mm & 100mm VESA mounting holes

Environment

Operating Temperature: 0°C~40°C

Relative Humidity

10%~90% (non-condensing)

Certifications

UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE

I/O Ports

4x USB 3.0 ports
2x USB 2.0 ports
1x RS232/422/485
1x HDMI - In
1x HDMI - Out
1x 4Pin DIN power Jack

Audio

Line-out & Microphone Jack
2-channel speakers

Warranty

4 Years* Standard with Optional Plans up to 5 Years



Notes:

*Only for US-based customers.

Looking to download this information?

iOne S Series Download PDF Version
Internal UPS Download PDF Version

How Cybernet Makes the Difference

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Warranty

Our devices include a 1-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty.

Customization

We offer a range of processors, operating systems, and features, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing ensures that our devices have a failure rate below 0.5%.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.
- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

What cleaners or disinfectants are compatible with your units?

We test our computers with a wide range of disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.

Can I use leather or rubber gloves with your touchscreens?

The standard touchscreen on our units are PCAP-type similar to the common smartphone touchscreen. As such, they will not work with leather or rubber gloves. We do offer a secondary touchscreen option for special projects that are resistive type and can support both leather and rubber gloves. Please reach out to our sales team for additional information.

Do you offer an anti-glare display?

Yes. We offer an anti-glare option on all of our units to overcome bright areas.

Why should I buy an all-in-one touchscreen PC versus a Dell or HP computer?

Opting for an enterprise-grade computer ensures enhanced reliability and profit-loss from down time. Whether it's due to heavy vibrations, constant exposure to dust and water, or a high chance of damage, these environments demand a different kind of computer that is designed to operate in these conditions such as our IPC units. Additionally, the typical Dell or HP computer only offers the latest and greatest ports and options, following the consumer PC market. However often times enterprise applications require more legacy ports such as serial/parallel ports or GPIO/DIO.

Does the computer support Windows 11?

Yes. The processor and related components are ready for Windows 11 and fully supported.

Do you provide drivers compatible with Microsoft Configuration Manager?

Yes. Cybernet publishes Microsoft Configuration Manager drivers on our support page. Should you have any questions, simply reach out to our support team for prompt support.
